2 Inch 50mm Adjustable F4R Formula 4x4 Lift Kit to suit Toyota Hilux N90 (GUN226R, GUN227R) 2025-on

After you have purchased this lift kit, someone from our team of suspension experts will contact you to confirm your order details, your requirements, and your vehicle specifications. All to ensure that we give you the right product.

Where available it is recommended to use an aftermarket offset control arm on a 2" lift to retain wheel alignment specifications.

• Pre-set to 2 inch/50mm lift (fitted with a Steel Bull Bar)
• Preload Adjustable Spring to adjust Vehicle Height

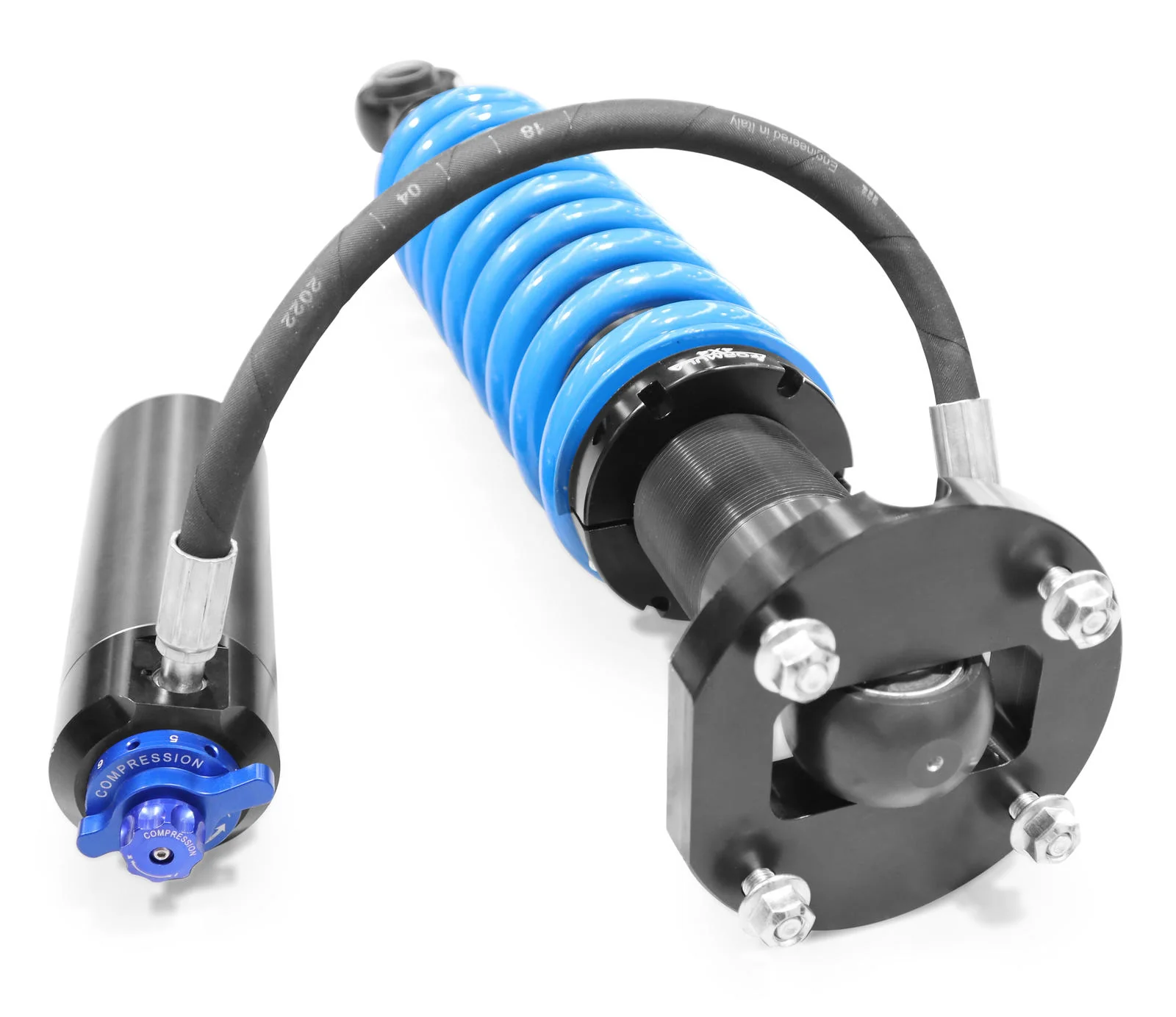

• 3 way Adjustable Remote Reservoir Front Damper

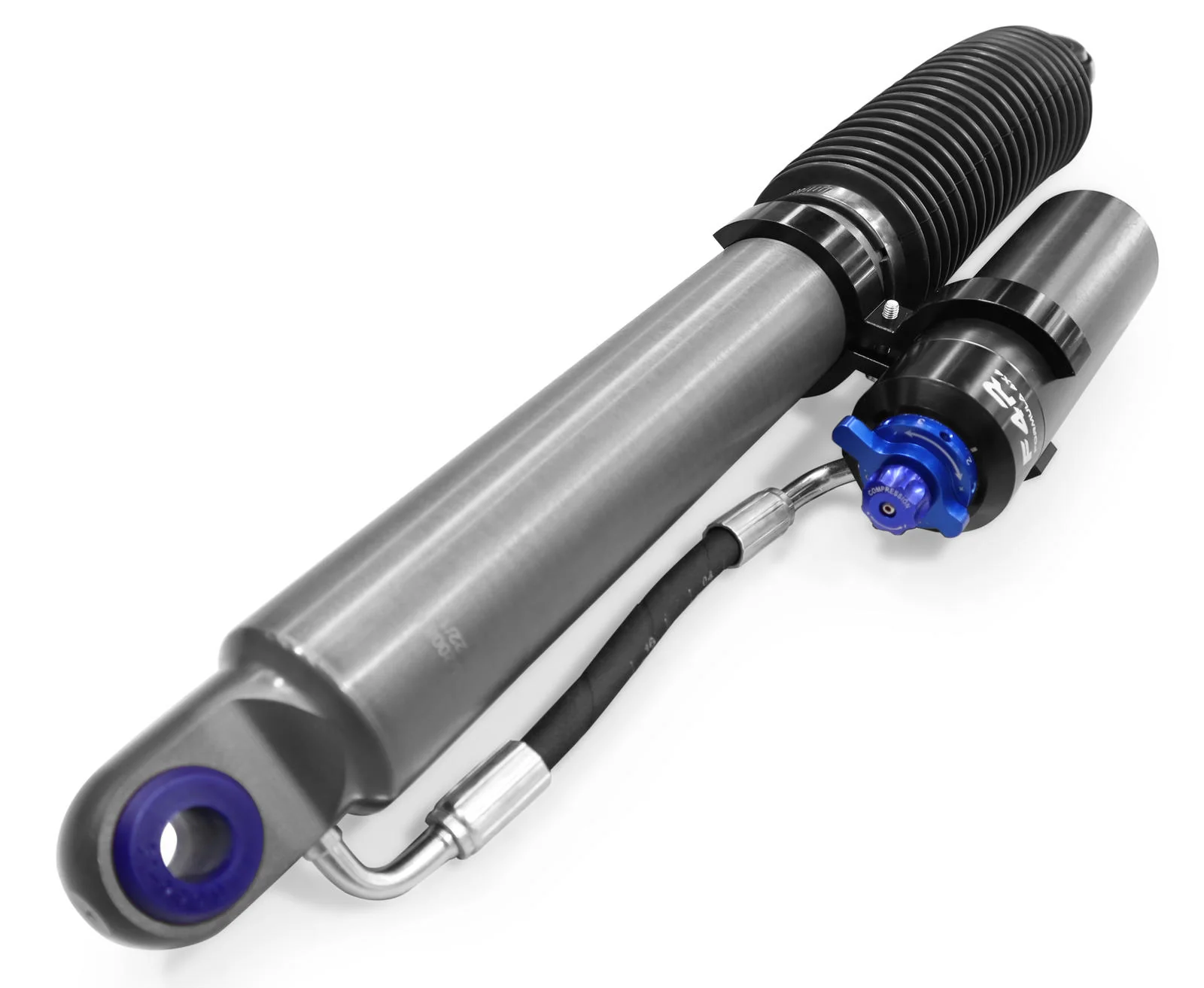

• 2 way Adjustable Remote Reservoir Rear Damper
• 8 low speed compression, 6 high speed compression & 12 rebound settings front & rear
• Heavy Duty 22mm Damper Shaft
• Shock open length front: 570mm
• Shock closed length front: 456mm
• Shock travel front: 114mm
• Shock open length rear: 650mm
• Shock closed length rear: 423mm
• Shock travel rear: 227mm
• 7075 aviation aluminium body and supports

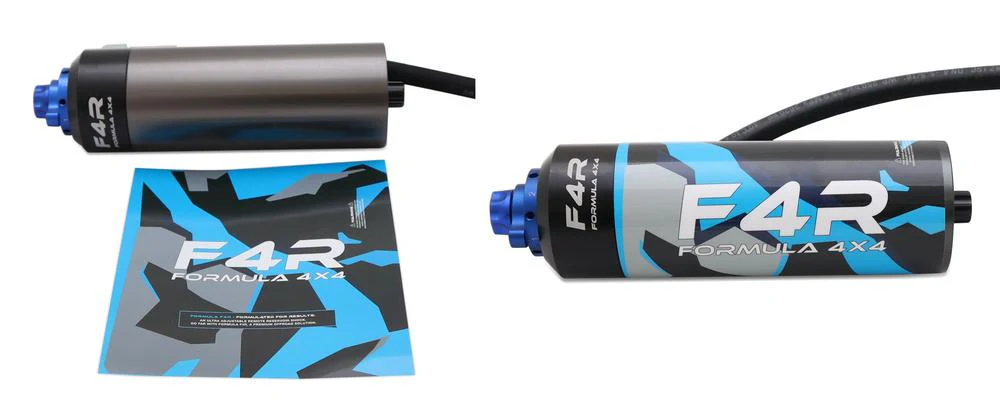

• Mono Shock Design with Remote Reservoir
• SuperPro Top & Bottom Shock Bushes Rear (Lifetime warranty)
• Custom Brackets for Front Reservoir Mount
• Shock body mounting brackets for rear reservoir
• Unlimited Kilometer warranty. Just activate your warranty online.

SKU	HILUX-402F4R

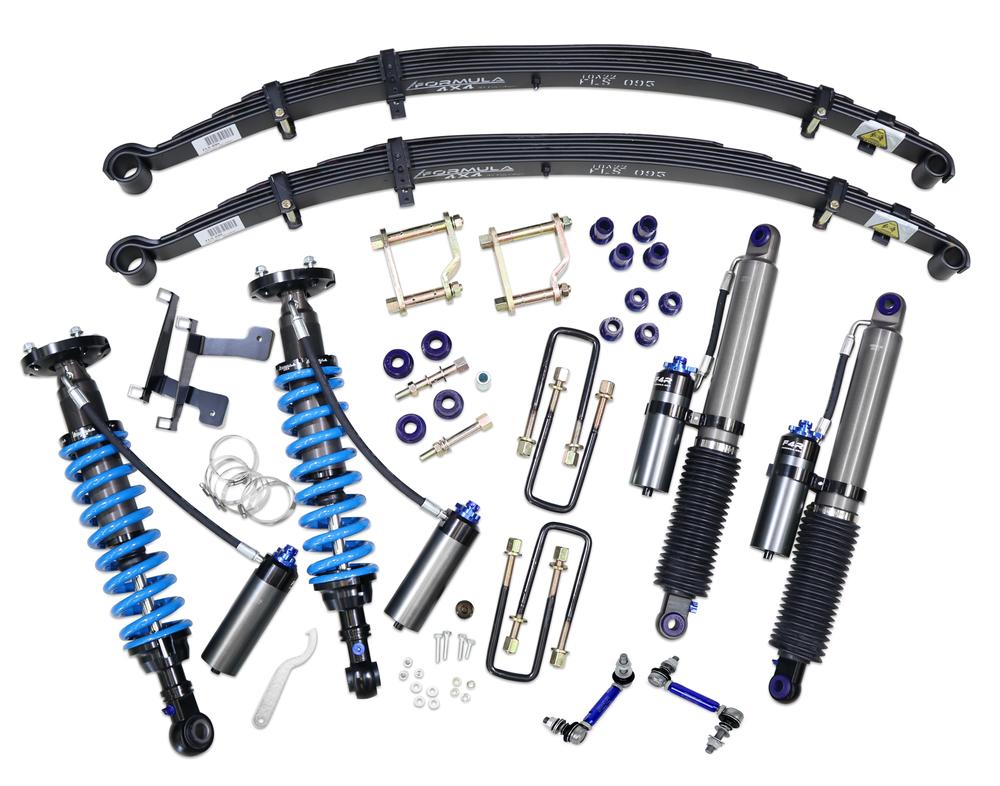

Foot Note 1	Kit contains: Formula F4R Kit 91036 x 1, 92008 x 1, Formula 4x4 Leaf Springs FLS-095 x 2, U-Bolts FUB-006 x 4, SuperPro Shackle, Pin & Bush Kit KIT219SK x 1, Brake Line Spacer Kit SPF4855K x 1
Foot Note 2	Kit contains: Sway Bar Relocation Kit TRC0088 x 1, Sway Bar Link Kit TRC1285L x 1
Components Per	1 Kit
Sub brand	Formula 4x4
Product Note	Formula F4R Adjustable Remote Reservoir Kit is set to: Front: 50mm or 2" Rear: 50mm or 2"
EAN	HILUX-402F4R
Warranty	5 years warranty
