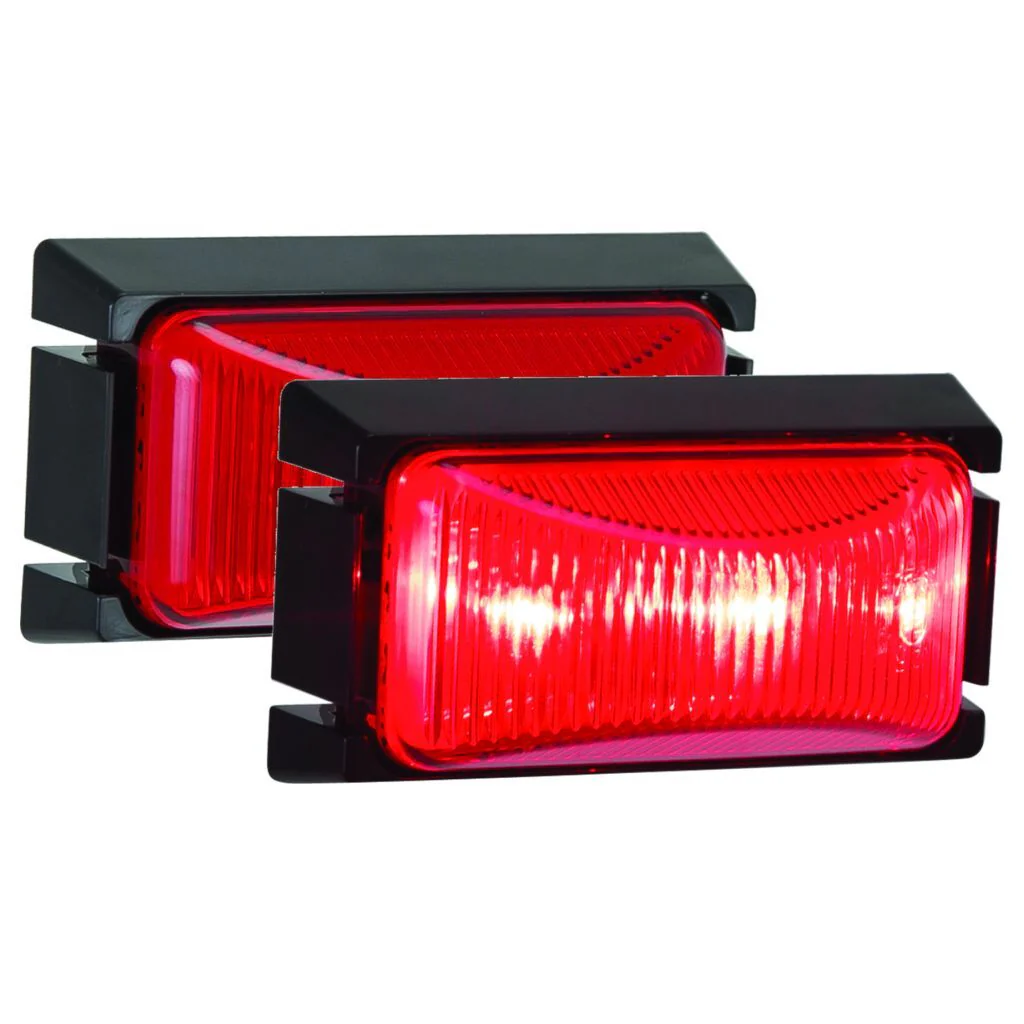

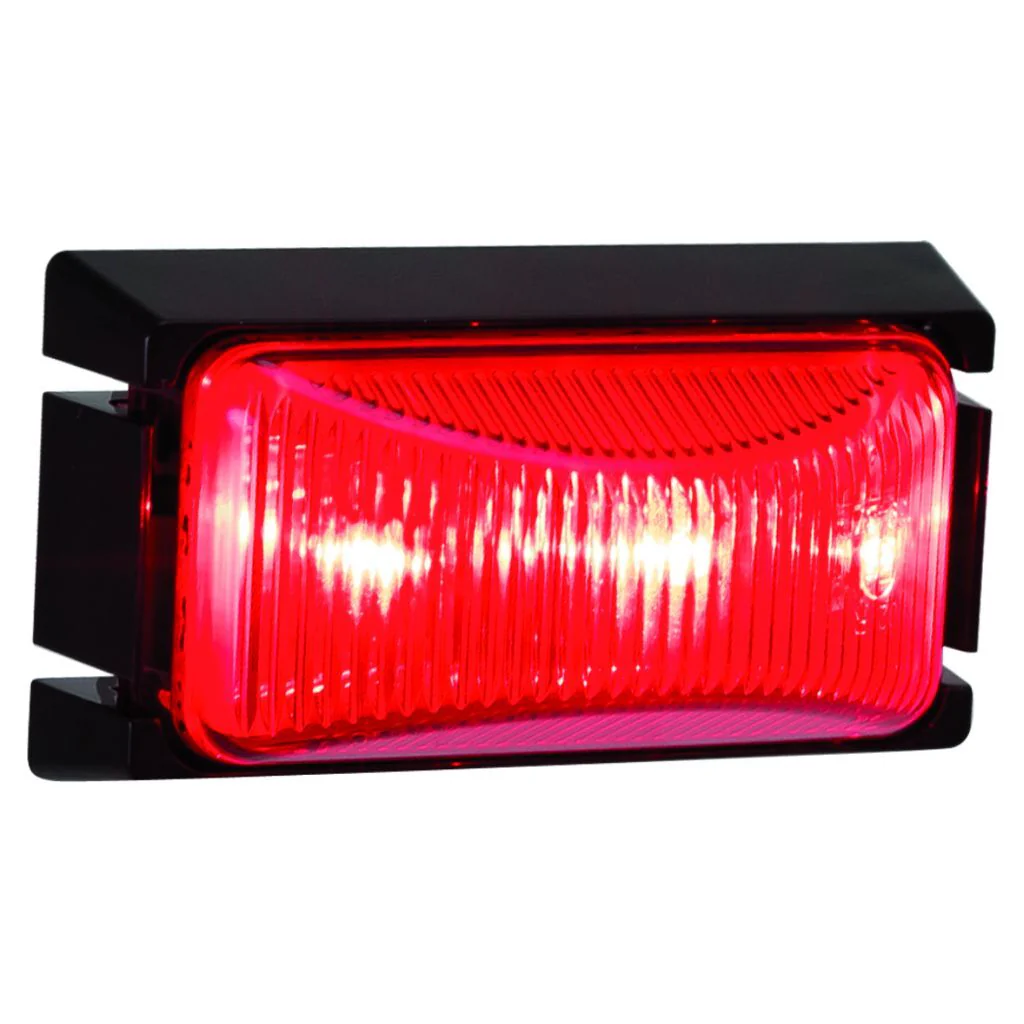

HULK 4X4 LED MARKER LAMP RED 12/24V 200mm LEAD
Hulk 4x4 LED Rear End Position Outline Marker Lamp 12/24 Volt
200mm Sheathed with 2 wires
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Sealed against Dust and Moisture
ADR 49/00 Rear Position Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
Red Illumination
Blister Qty: 1
2 Year Warranty
.
HU9655 is the matching Side Marker Lamp
HU9656 is the matching Supplementary Side Indicator Lamp
HU9658 is the matching White LED Front End Outline Marker Lamp
3 x High Intensity White LED's
0.06amps at 12 Volt and 0.05amps at 24 Volt Current Draw
Red Optical Hardened Acrylic Lens
Black Plastic Housing with mounting screws included
Surface Mount, low mounting depth for easy installation
| Colour | Red |
| Depth (mm) | 26 |
| Height (mm) | 38 |
| Mount | Surface |
| No. of LED | 3 |
| Shape | Rectangular |
| Type | LED |
| Voltage | 12/24V |
| Width (mm) | 74 |
| SKU | HU9657 |
| Barcode # | 9316042321777 |
| Brand | Hulk |
